Installing Oracle Application Server 10g

To install Oracle Application Server 10g:
1) Start up the installer.
2) Welcome screen
Click Next.



3) Specify File Locations screen
Name: Enter a name to identify this Oracle home.
Example: appserver

Path: Enter the full path to the destination directory. This is
the Oracle home. If the destination directory does not exist,
Oracle Universal Installer creates it.
Example: D:\oracle\appserver
Click Next.



4) Select a Product to Install screen
Select Oracle Application Server 10g and click Next.



5) Select Installation Type screen
Select Business Intelligence and Forms and click Next.



6) Confirm Pre-Installation Requirements screen
Check that you meet the requirements listed on this screen,
select all the checkboxes, and click Next.



7) Select Configuration Options screen
Do not select Oracle Application Server 10g Portal
Do not select Oracle Application Server 10g Wireless
Do not select Oracle Application Server 10g Discoverer
Do not select Oracle Application Server 10g Personalization
Select Oracle Application Server 10g Reports Services
Select Oracle Application Server 10g Forms Services
Click Next.



8) Specify Port Configuration Options screen
Select Automatic and click Next.



9) Register with Oracle Internet Directory
Enter the Host name.
Example: AsServer

Enter the port:
Example: 389
Click Next.



10) Specify OID Login
Click Next.



11) Select Oracle Application Server 10g Metadata Repository
Click Next.



12) Provide Outgoing Mail Server Information
Click Next.



13) Specify Instance Name and ias_admin Password screen
Instance Name: Enter a name for this instance. Instance names can contain alphanumeric and _ (underscore) characters. If you have more than one Oracle Application Server instance on a computer, the instance names must be unique.
Example: InstanceName

ias_admin Password and Confirm Password: Enter and
confirm the password for the ias_admin user. This is the administrative user for this instance. Passwords must consist of at least five characters, and one of the characters must be a number.
Example: InstancePassword
Click Next.



14. Summary screen
Verify your selections and click Install. The installer now installs the files.

15. Configuration Assistants screen
This screen displays the progress of configuration assistants, which configure Oracle Application Server components.

16. End of Installation screen
Click Exit to quit the installer.

Installing Oracle Application Server Infrastructure 10g

To install OracleAS Infrastructure with a new database and a new Oracle Internet Directory:
1) Start up the installer.
2) Welcome screen
Click Next.



3) Specify File Locations screen
Name: Enter a name to identify this Oracle home.
Example: InfrastructureServer

Path: Enter the full path to the destination directory. This is the Oracle home. If the destination directory does not exist, Oracle Universal Installer creates it.
Example: D:\oracle\InfrastructureServer
Click Next.



4) Select a Product to Install screen
Select Oracle Application Server Infrastructure 10g and click Next.



5) Select Installation Type screen
Select Identity Management and OracleAS Metadata Repository and click Next.



6) Confirm Pre-Installation Requirements screen
Check that you meet the requirements listed on this screen, select all the checkboxes, and click Next.



7) Select Configuration Options screen
Select Oracle Internet Directory.
Select Oracle Application Server Single Sign-On.
Select Oracle Application Server Delegated Administration Service.
Select Oracle Application Server Directory Integration and Provisioning.
Do not select Oracle Application Server Certificate Authority.
Do not select High Availability and Replication.
Click Next.



8) Specify Port Configuration Options screen
Select Automatic and click Next.



9) Specify Namespace in Internet Directory screen
Select Suggested Namespace and click Next.



10) Specify Database Configuration Options screen



Global Database Name:
Enter a name for the OracleAS Metadata Repository database, and append your domain name to the database name.
The database name portion of the global database name:
• can contain only alphanumeric characters
• must not be longer than eight characters
• must not contain the word "PORT" or "HOST" in uppercase characters. If you need to use these words, use lowercase
characters.
The domain name portion of the global database name:
• can contain alphanumeric, underscore (_), minus (-), and pound (#) characters
• must not be longer than 128 characters

Example: DBName

SID:
Enter the system identifier for the OracleAS Metadata Repository database. Typically this is the global database name, but without the domain name. The SID must be unique across all databases. The SID name has the same naming restrictions as the database name portion of the global database name (listed above).

Example: SIDName

Select Database Character Set:
Select the character set that you want to use for the database.

Database File Location:
Specify the full path to the parent directory for the data files directory. The directory you specify must exist, and you must have write permissions in it. The installer installs the data files in a subdirectory of the path you specify. The installer uses the database name for the name of the subdirectory. For example, if you specify
DBName for the global database name and D:\Oracle\OracleFile for the database file location, the installer places database files in the following directory: D:\Oracle\OracleFile\DBName The file system that contains the directory must have at least 1.3 GB of free disk space. Additional disk space is required for production databases, depending on the amount of data that you plan to store.
Click Next.

11. Specify Database Schema Passwords screen
Set the passwords for the administrative database users, which are privileged accounts used for database administration. You can use the same password for all users, or specify different passwords for each user.
Click Next.



12. Specify Instance Name and ias_admin Password screen
Instance Name: Enter a name for this instance. Instance names can contain alphanumeric and _ (underscore) characters. If you have more than one Oracle Application Server instance on a computer, the instance names must be unique.
Example: InstanceName

ias_admin Password and Confirm Password: Enter and
confirm the password for the ias_admin user. This is the administrative user for this instance. Passwords must consist of at least five characters, and one of the characters must be a number.
Example: InstancePassword
Click Next.



13. Summary screen
Verify your selections and click Install. The installer now installs the files.



14. Configuration Assistants screen
This screen displays the progress of configuration assistants, which configure Oracle Application Server components.



15. End of Installation screen
Click Exit to quit the installer.

Oracle Developer Suite 10g Quick Installation Guide

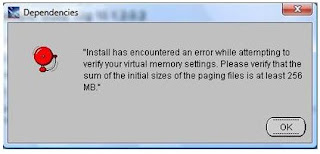

During the installation, the following error message will prompt:



To resolve this problem:
1. Go to Control Panel > System > Advance system settings

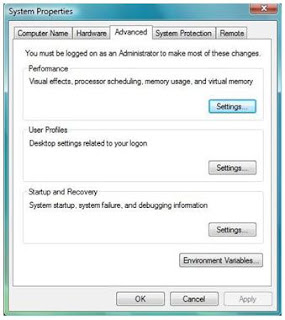

2. Under Advanced tab: Click on the Settings



3. Click on the [Advanced tab]

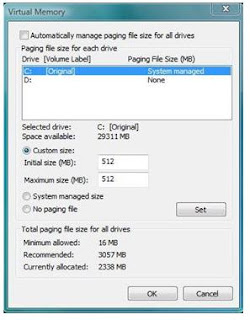

4. Under [Virtual memory], click Change.
5. Uncheck [Automatically manage paging file size for all drives] checkbox.
6. Under Drive[Volume Label], click the drive that contains the paging file you want to change.
7. Click [Custom size], type a new size in megabytes in the Initial size(MB) or Maximum size (MB) box.
8. Click Set button and OK.



9. Message prompt:
‘The Changes you have made require you to restart your computer before they can take effect.’

10. Restart the computer.


Installing Forms 10g

1. Download two files from Oracle:
ds_windows_x86_101202_disk1.zip (626,122,752 bytes)
ds_windows_x86_101202_disk2.zip (236,880,881 bytes)

2. Extract both into the C:\oracle directory, as disk1 and disk2.

3. Right click setup.exe and click Properties.



4. Under [Compatibility], check the compatibility to run as Windows XP (Service Pack 2).



5. Run Setup.exe.

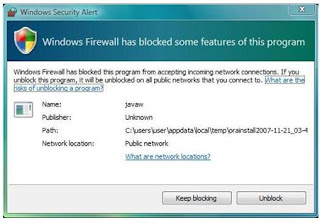

6. During the installation process, a Windows Security Alert dialog box appears, like the one below, click the unblock button.

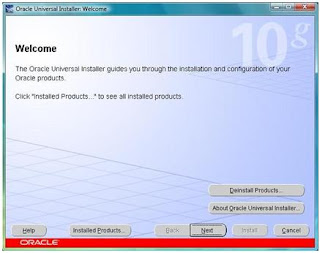

7. The Welcome to the Oracle Universal Installer dialog box opens. Click Next.

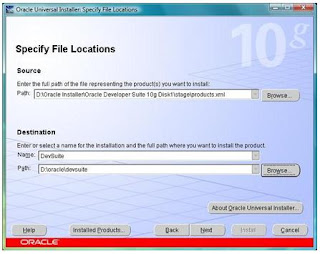

8. On the Specify File Locations page,
a) Source Path = Use Default Path
b) Destination Name = DeveloperSuite
c) Destination Path = C:\Oracle\DeveloperSuite



9. On the Select Installation Type page, select the Complete(1.11GB) option button, then click Next.



10. When the Provide Outgoing Mail Server Information page appears, do not enter any values, then click Next.



11. When the Summary page appears, click Install.



12. The install page appears. The installation process will take several minutes.

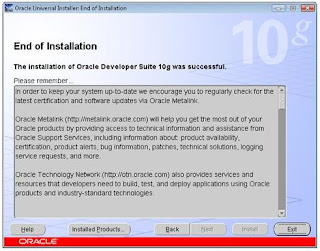

13. When the End of Installation page appears, click Exit, then click Yes to confirm exiting.



14. The installation completed.


The Oracle Developer Suite download page:
http://www.oracle.com/technology/software/products/ids/index.html

Oracle Developer Suite Installation Guide:
http://download.oracle.com/docs/cd/B25016_07//doc/dl/core/B16012_04/toc.htm
